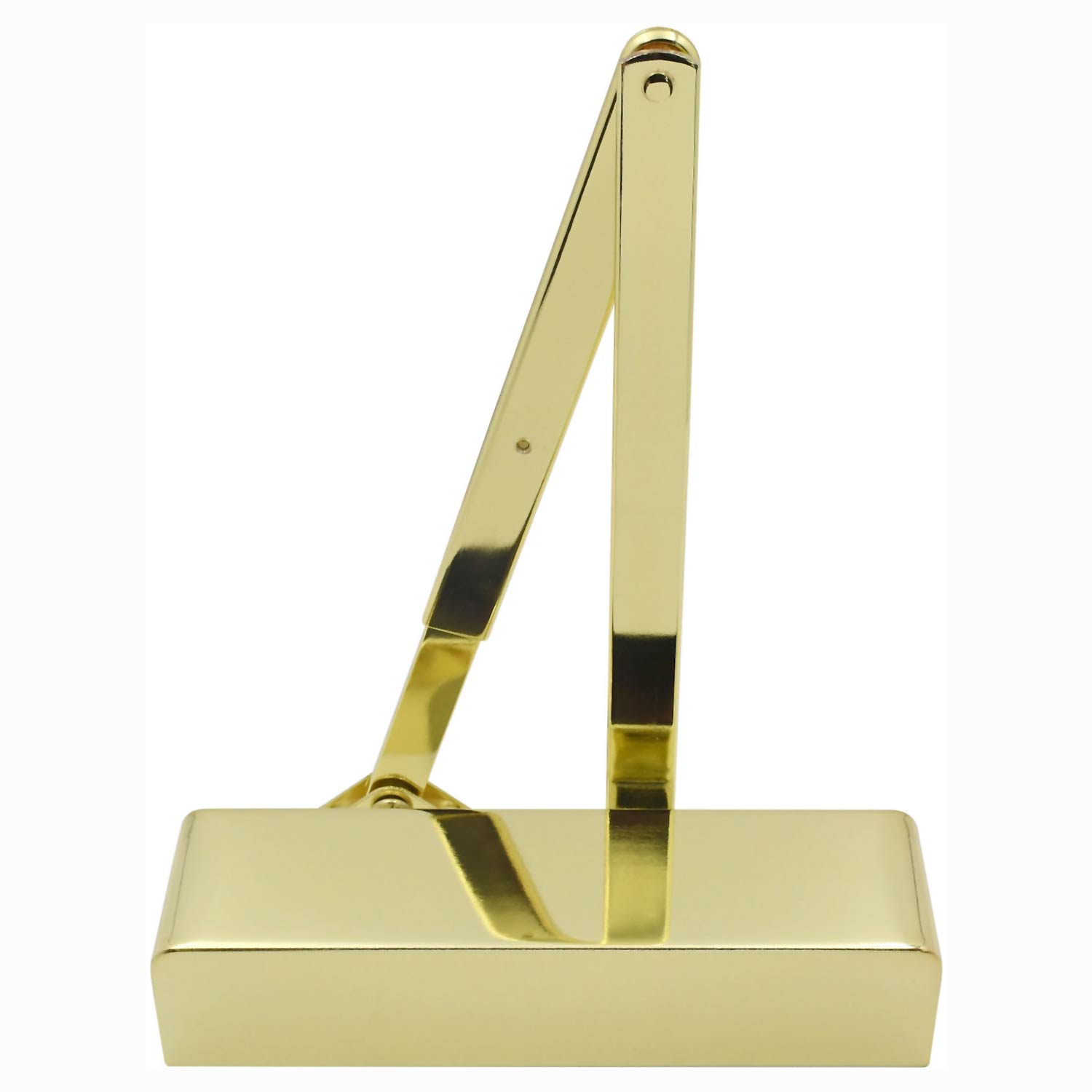

Polished Brass Overhead Door, Size 2 - 4 - ZDC0024A-PB

A quality door closer for use in both commercial and residential applications, supplied with matching fig66, parallel arm bracket for all mounting applications.

 PRODUCT FEATURES

• Power size: Power adjustable 2-4, by spring.
• Body material: Aluminium.
• Arm set type / material: Scissor / Steel .
• Functions: Tested functions – Closing, latching speed and backcheck for installation on: – Door mount pull (Fig 1) – Door mount push (Fig 6) – Frame mount push (Fig 61) installed with no head projection only.
• Maximum door weight: 80kgs (door mount pull, frame mount push) 60kgs (door mount push).
• Maximum door width: 1100mm (door mount on pull ise, frame-mounted on push side) 950mm (door mounted on push side).
• Performance Testing: Successfully tested in accordance with the requirements of BS EN1154: 1997.
• Successfully tested in accordance with the opening force recommendations and requirements contained within BS 8300 / Approved Document M for door closing devices and is suitable for the following minimum door widths: – Door mount pull (Fig 1) = 857mm – Door mount push (Fig 6) = 689mm – Frame mount push (Fig 61) – No head projection = 917mm

– Frame mount push (Fig 61) – 50mm head projection = 910mm

FIRE TESTING

• Successfully fire tested in accordance with the requirements of BS EN1634-1, suitable for use on 30, 60, 90 and 120-minute timber fire doors.

CERTIFICATION

• UKCA marked (Certificate AD7992).
• CE marked (Certificate AD7994).
• CERTIFIRE approved (Certificate CF6103).
