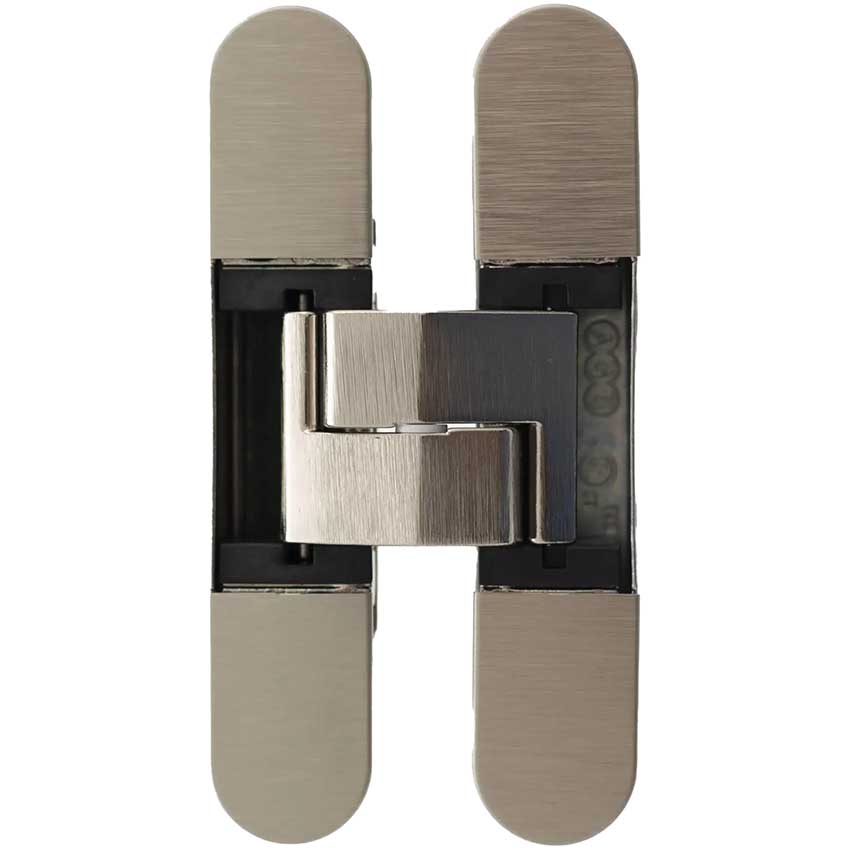

AGB Eclipse Fire Rated Adjustable Concealed Hinge In Satin Nickel - AGBH32SN

• Concealed fitting hinge for timber and aluminium doors.
• Fully concealed and flush with no protruding parts when the door is closed.
• Fitted to doors for a sleek uncluttered look, also suitable for hidden doors.
• For use on doors up to 60 kgs when using 3 hinges, 40 kgs with 2 hinges.
• Adjustable closing pressure, horizontal and vertical position via a hex key.
• Suitable for use on FD30 fire doors.
• Hinge jig available.
• Supplied in single hinges.

Dimensions:

• 115mm high face plate, 23mm wide.
• 4mm face plate depth.
• 20.5mm fame recess depth.
• 27mm door sash recess.

Finish;

• Satin nickel.
