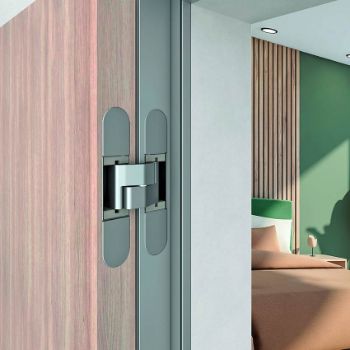

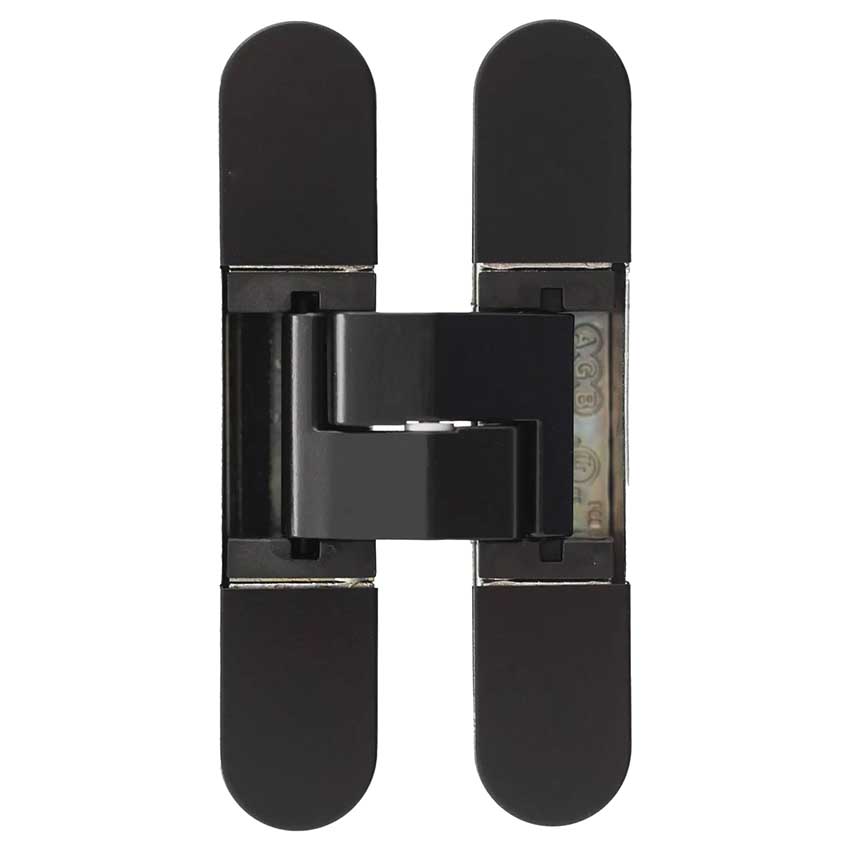

- Concealed fitting hinge for timber and aluminium doors.
- Fully concealed and flush with no protruding parts when the door is closed.
- Fitted to doors for a sleek uncluttered look, also suitable for hidden doors.
- For use on doors up to 60 kgs when using 3 hinges, 40 kgs with 2 hinges.
- Adjustable closing pressure, horizontal and vertical position via a hex key.
- Suitable for use on FD30 fire doors.
- Hinge jig available.
- Supplied in single hinges.
Dimensions:
- 115mm high face plate, 23mm wide.
- 4mm face plate depth.
- 20.5mm fame recess depth.
- 27mm door sash recess.
Finish;
